ACP24
Material description
Material ID: ACP24
Material type: Aluminium composite panel with a core consisting of polyethylene modified with vinyl acetate (PE-VA) and a fire retardant.
Polymer: Polyethylene modified with vinyl acetate (89%)
Additives (fire retardants, fillers or traces of inorganic elements): Calcium Carbonate (9%), Silicon (1%), Chlorine (1%), traces of other elements (<1%)
| Compound | Mass Concentration (%) |
|---|---|
| Polyethylene modified with vinyl acetate (PE-VA) | 89 |
| Calcium Carbonate (CaCO3) | 9 |
| Silicon (Si) | 1 |
| Chlorine (Cl) | 1 |
| Traces of titanium (Ti) | <1 |
| Traces of magnesium (Mg) | <1 |
| Traces of aluminium (Al) | <1 |
| Traces of sulfur (S) | <1 |
| Traces of iron (Fe) | <1 |
| Traces of potassium (K) | <1 |
A. Material composition identification
A.1 Attenuated total reflection – Fourier transform infrared spectroscopy (ATR-FTIR)
Table 2. FTIR compound identification.| Identified Compounds |
|---|
| Polyethylene modified with vinyl acetate (PE-VA) |
| Calcium Carbonate (CaCO3) |

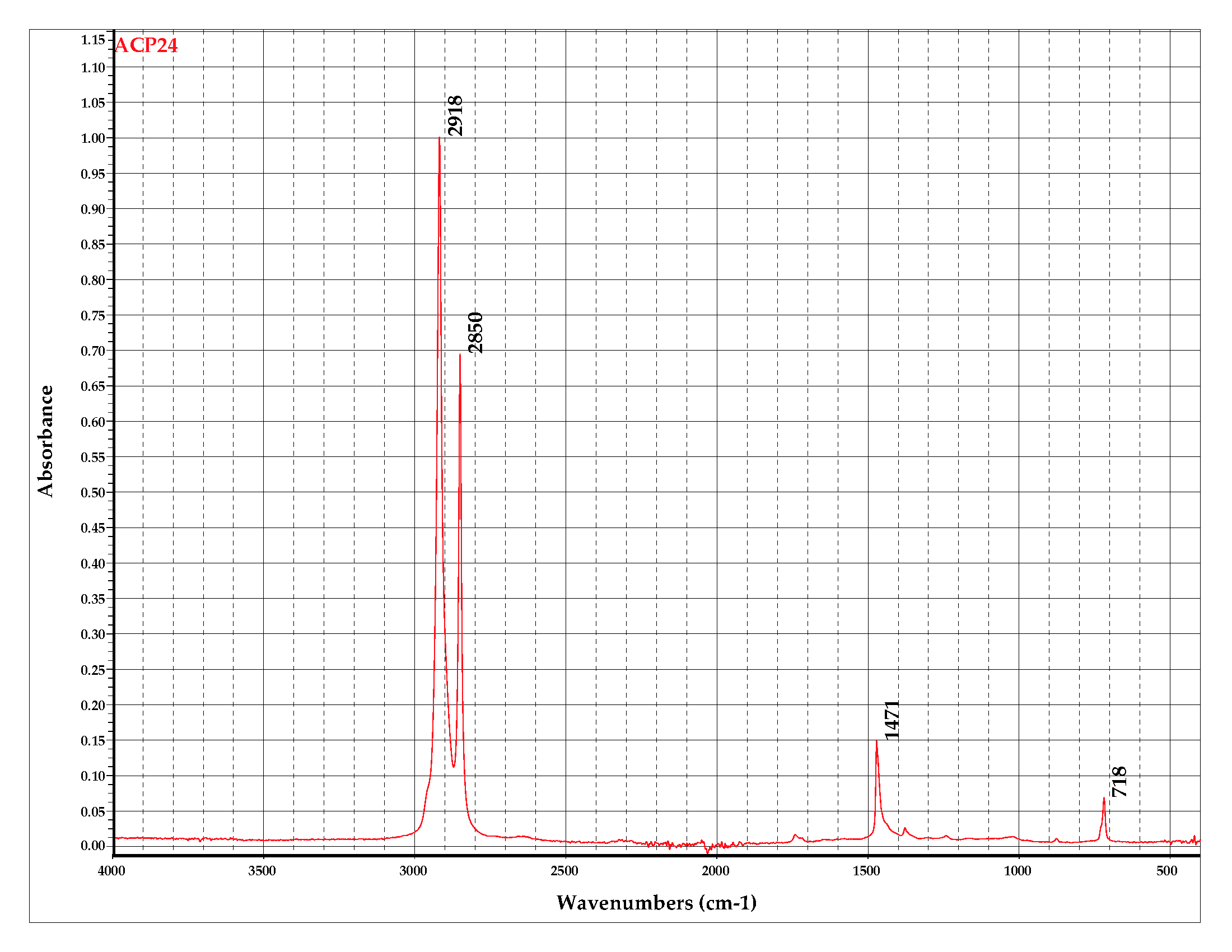

Figure 1 . FTIR spectra: Absorbance percentage versus wavenumber from the sample.

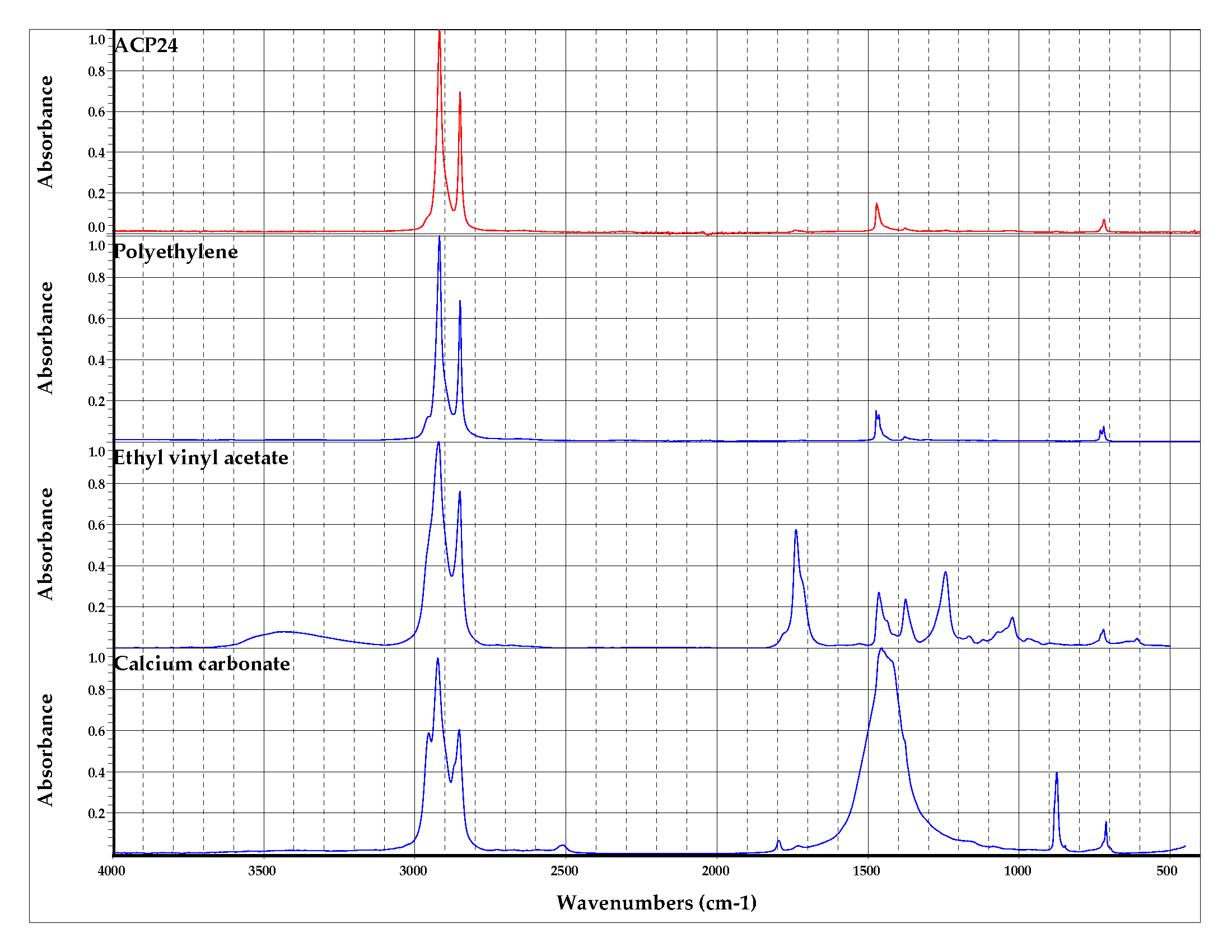

Figure 2. FTIR spectra: Absorbance percentage versus wavenumber from the sample and the identified compounds.
A.2 Energy Dispersive X-Ray Fluorescence (EDXRF)
Table 2. Inorganic elements and their mass concentration identified with EDXRF.
| Element | Mass Concentration (%) |
|---|---|
| Ca | 6 |
| Cl | 1 |
| Ti | 1 |
| Si | 1 |
| Mg | <1 |
| Fe | <1 |
| Al | <1 |
| S | <1 |
| K | <1 |

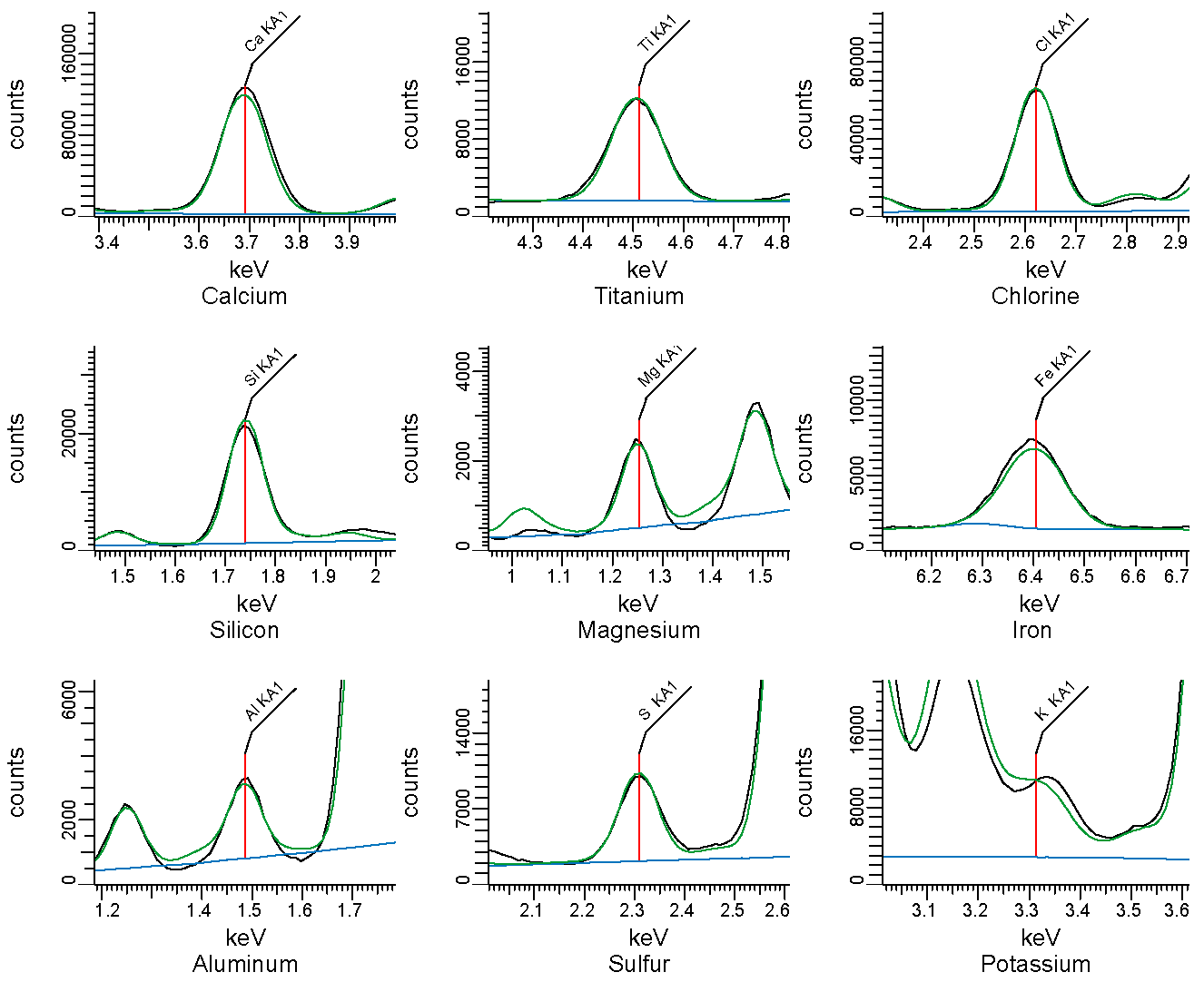

Figure 3. EDXRF spectra. Counts vs energy. Identified elements are shown as vertical lines.
B. Thermogravimetric analysis
Table 3. Mass fraction of residue after thermal decomposition.
| Condition | Fraction of mass residue at 800°C |
|---|---|
| Non-oxidative (nitrogen) | 0.06 |
| Oxidative (air) | 0.04 |
Table 4. Temperature and amplitude of main peaks in non-oxidative conditions.
| Peak ID | Temperature peak (°C) | Amplitude of peak (°C-1) |
|---|---|---|
| Peak 1 | 489 | 2.759 x 10-2 |
Table 5. Temperature and amplitude of main peaks in oxidative conditions.
| Peak ID | Temperature peak (°C) | Amplitude of peak (°C-1) |
|---|---|---|
| Peak 1 | 359 | 3.72 x 10-3 |
| Peak 2 | 429 | 9.36 x 10-3 |
| Peak 3 | 461 | 1.408 x 10-2 |
| Peak 4 | 487 | 6.45 x 10-3 |

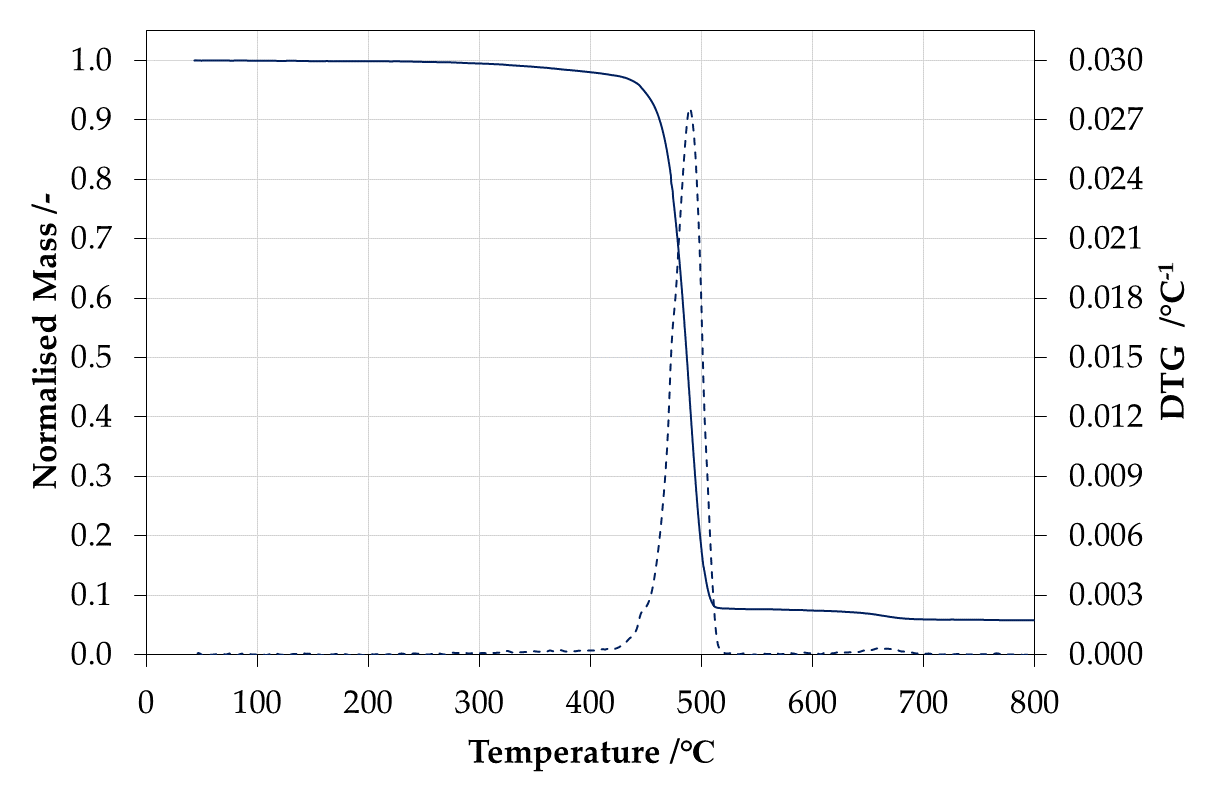

Figure 4. Normalised mass (solid line) and derivative of the normalised mass (dashed line) in 150 ml min-1 of nitrogen and a heating rate of 20°C min-1.

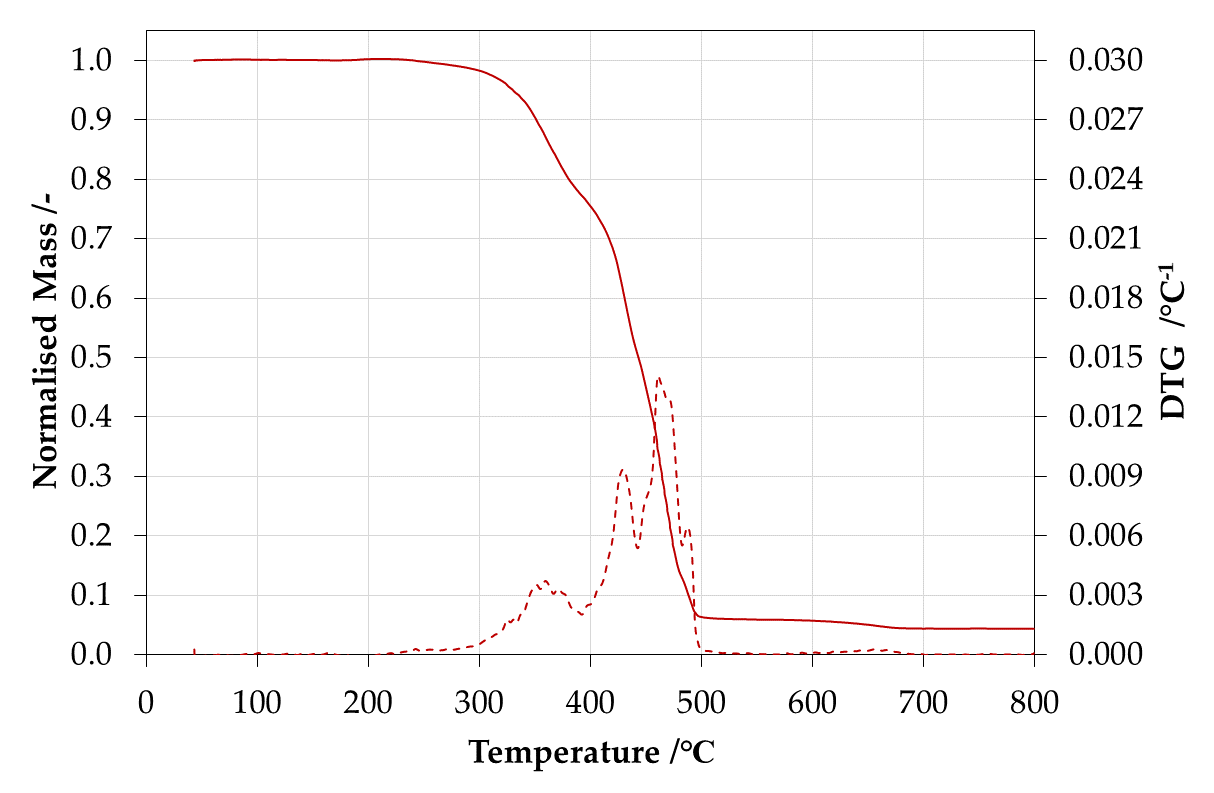

Figure 5. Normalised mass (solid line) and derivative of the normalised mass (dashed line) in 150 ml min-1 of air and a heating rate of 20°C min-1 .
